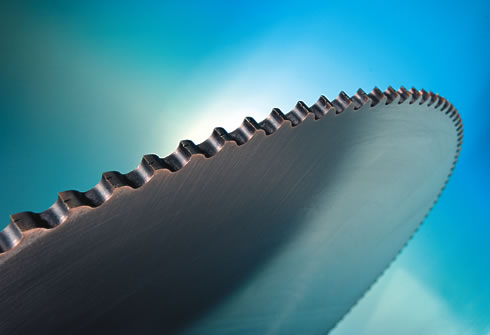

镶片式圆盘冷切锯片
|
锯片典型设计和规格HSS S-6-5-2(DMo5)
|
|||||||||||||
|
直径 |
切宽 |
锯片厚度 |
单片重量 |
镶片数量 |
中心孔和吊装孔 |
镶片齿间距 |
|||||||
|
[mm] |
[mm] |
[mm] |
[kg] |
[Stck.] |
HB NL Stck/ Ø /Teilkreis Ø |
2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
250 |
3.0 |
2.4 |
1.0 |
12 |
32 4/9/50 + 2/12/64 40 2/8.5/55 + 4/12/64 |
|
21.8 |
16.4 |
13.1 |
10.9 |
8.2 |
6.5 |
5.5 |
|
275 |
3.0 |
2.4 |
1.1 |
12 |
40 2/8.5/55 + 4/12/64 |
|
24.0 |
18.0 |
14.4 |
12.0 |
9.0 |
7.2 |
6.0 |
|
300 315 |
3.6 |
3.0 |
1.6 1.8 |
14 |
40 2/8.5/55 + 4/12/64 |
|
22.4 23.6 |
16.8 17.7 |
13.5 14.1 |
11.2 11.8 |
8.4 8.8 |
6.7 7.1 |
5.6 5.9 |
|
360 |
3.6 |
3.0 |
2.4 |
16 |
40 2/8.5/55 + 4/12/64 50 4/15/80 + 4/15/85 |
|
23.6 |
17.7 |
14.1 |
11.8 |
8.8 |
7.1 |
5.9 |
|
370 |
3.6 |
3.0 |
2.6 |
16 |
50 4/15/80 + 4/15/85 |
|
24.2 |
18.2 |
14.5 |
12.1 |
9.1 |
7.3 |
6.1 |
|
400 400 |
4.0 5.0 |
3.3 3.5 |
3.0 3.3 |
16 |
50 4/15/80 + 4/15/85 |
|
26.2 |
19.6 |
15.7 |
13.1 |
9.8 |
7.9 |
6.5 |
|
410 |
5.0 |
3.5 |
3.4 |
18 |
50 4/15/80 + 4/15/85 |
|
23.8 |
17.9 |
14.3 |
11.9 |
8.9 |
7.2 |
6.0 |
|
425 |
4.0 |
3.0 |
3.3 |
18 |
50 4/15/80 + 4/15/85 |
|
24.7 |
18.5 |
14.8 |
12.4 |
9.3 |
7.4 |
6.2 |
|
450 |
4.0 |
3.3 |
4.1 |
18 |
40 2/15/80 + 2/15/100 50 4/15/80 + 4/18/100 |
|
26.2 |
19.6 |
15.7 |
13.1 |
9.8 |
7.9 |
6.5 |
|
460 |
5.0 |
3.5 |
4.6 |
18 |
50 4/15/80 + 4/15/85 60 4/16/90 + 4/23/96 60 4/18/100 |
|
26.7 |
20.1 |
16.0 |
13.4 |
10.0 |
8.0 |
6.7 |
|
460 |
5.0 |
3.5 |
4.6 |
18 |
50 4/15/80 + 4/15/85 60 4/16/90 + 4/23/96 60 4/18/100 |
|
26.7 |
20.1 |
16.0 |
13.4 |
10.0 |
8.0 |
6.7 |
|
510 |
5.7 |
4.0 |
6.5 |
18 |
50 4/18/100 50 4/15/80 + 4/18/100 |
|
29.7 |
22.2 |
17.8 |
14.8 |
11.1 |
8.9 |
7.4 |
|
560 |
5.0 |
3.7 |
7.0 |
18 |
50 4/18/100 80 8/22/142 |
|
32.6 |
24.4 |
19.5 |
16.3 |
12.2 |
9.8 |
8.1 |
|
630 |
5.0 |
3.8 |
9.0 |
20 |
80 4/23/120 + 4/27/160 |
49.5 |
33.0 |
24.7 |
19.8 |
16.5 |
12.4 |
9.9 |
8.2 |
|
630 |
6.0 |
4.5 |
11.0 |
20 |
80 4/23/120 + 4/27/160 |
49.5 |
33.0 |
24.7 |
19.8 |
16.5 |
12.4 |
9.9 |
8.2 |
|
660 |
6.0 |
4.5 |
12.0 |
20 |
80 4/23/120 + 4/27/160 80 8/22/142 |
51.8 |
34.5 |
25.9 |
20.7 |
17.3 |
13.0 |
10.4 |
8.6 |
|
710 |
6.2 |
4.5 |
14.0 |
24 |
80 4/23/120 + 4/27/160 |
46.4 |
31.0 |
23.2 |
18.6 |
15.5 |
11.6 |
9.3 |
7.7 |
|
760 |
6.3 |
4.5 |
16.0 |
24 |
80 4/23/120 + 4/27/160 |
49.7 |
33.1 |
24.9 |
19.9 |
16.6 |
12.4 |
9.9 |
8.3 |
|
810 |
6.8 |
5.0 |
20.0 |
24 |
80 4/23/120 + 4/27/160 |
53.0 |
35.3 |
26.5 |
21.2 |
17.7 |
13.2 |
10.6 |
8.8 |
|
860 |
6.5 |
4.5 |
20.5 |
24 |
80 4/23/120 + 4/27/160 |
56.3 |
37.5 |
28.1 |
22.5 |
18.8 |
14.1 |
11.3 |
9.4 |
|
910 920 960 |
7.0 |
5.0 |
26.0 27.0 29.0 |
30 |
80 4/23/120 + 4/27/160 100 8/27/186 100 4/32/200 |
47.6 48.1 50.2 |
31.7 32.1 33.5 |
23.8 24.1 25.1 |
19.5 19.3 20.1 |
15.9 16.0 16.7 |
11.9 12.0 12.6 |
9.5 9.6 10.0 |
7.9 8.0 8.4 |
|
1010 1110 |
8.0 |
6.0 |
38.0 45.0 |
30 36 |
100 4/32/200 + 4/32/250 |
52.9 48.4 |
35.2 32.3 |
26.4 24.2 |
21.1 19.4 |
17.6 16.1 |
13.2 12.1 |
10.6 9.7 |
8.8 8.1 |
|
1120 |
8.2 |
6.0 |
46.0 |
36 |
100 4/32/200 + 4/32/250 |
48.8 |
32.6 |
24.4 |
19.5 |
16.3 |
12.2 |
9.8 |
8.1 |
|
1250 |
9.0 |
7.0 |
67.0 |
36 |
100 4/32/250 |
54.5 |
36.3 |
27.3 |
21.8 |
18.2 |
13.6 |
10.9 |
9.1 |
|
1310 1320 |
9.0 |
7.0 |
74.0 75.0 |
36 |
100 4/32/250 |
57.1 57.6 |
38.1 38.4 |
28.6 28.8 |
22.9 23.0 |
19.0 19.2 |
14.3 14.4 |
11.4 11.5 |
9.5 9.6 |
|
1320 |
6.7 |
5.2 |
55.0 |
36 |
100 4/32/250 |
57.6 |
38.4 |
28.8 |
23.0 |
19.2 |
14.4 |
11.5 |
9.6 |
|
1410 |
9.0 |
7.0 |
86.0 |
36 |
100 4/32/250 |
61.5 |
41.0 |
30.7 |
24.6 |
20.5 |
15.4 |
12.3 |
10.2 |
|
1430 |
9.5 |
7.0 |
88.0 |
36 |
100 4/32/250 |
62.4 |
41.6 |
31.2 |
24.9 |
20.8 |
15.6 |
12.5 |
10.4 |
|
1510 |
9.0 |
7.0 |
98.0 |
36 |
100 4/32/250 |
65.9 |
43.9 |
32.9 |
26.3 |
22.0 |
16.5 |
13.2 |
11.0 |
|
1610 |
11.0 |
8.0 |
128.0 |
40 |
100 4/33/315 |
63.2 |
42.1 |
31.6 |
25.3 |
21.1 |
15.8 |
12.6 |
10.5 |
|
其它规格和齿形可根据具体应用量身定制。
|
|||||||||||||
